Showing 1–16 of 87 results

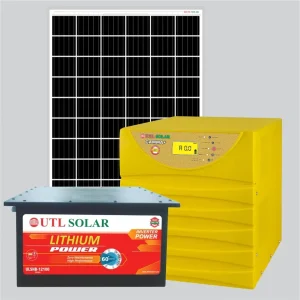

UTL’s 1kVA Off-grid solar system combines the capabilities of photovoltaic panels and solar batteries to remove the electrical grid component entirely from your system.
| Particulars | Description |
| Solar System Capacity | 3kva |
| rMPPT Solar Inverter | Gamma Plus 324 |
| Technology | rMPPT |
| Inverter warranty | 2 years |
| Solar Panel Quantity | 540Watt x 4No’s |
| Solar Panel Warranty | 25 years performance warranty |
| Lithium Battery | 25.6v/ 100Ah |
| Battery Warranty | 5 years |
Alfa+ Solar PCU 15kVA/240V is mainly used in Hospitals, schools, industries petrol pumps, banks, and also in the home. It continuously monitors battery and solar voltage as well as grid and output voltage with their current.
Gamma + PCU (Power Conditioning Unit) is an integrated unit consists of grid charger, inverter, MPPT Solar Charger. It continuously monitors Battery and Solar voltage as well as Grid and Output voltage with their currents. MPPT based solar charger extracts the maximum power from the solar panels whereby it increases the efficiency of the system. MPPT charger has multistage charging which maintains the battery charging voltage such that it increases the lifespan of battery.
Gamma+ is very easy to install. It fits your budget and also helps to cut your electricity costs. So, it is double advantage to the user!! Unlike other sources of energy, Gamma+ and the Solar Panel do not emit harmful gases and residue. Thus, it helps in keeping the environment clean and healthy.
MPPT is a technique used with photovoltaic(PV) solar systems to maximize power extraction under all conditions.
rMPPT, or maximum power point tracker is an electronic DC to DC converter that optimizes the match between the solar array (PV panels), and the battery bank. To put it simply, they convert a higher voltage DC output from solar panels down to the lower voltage needed to charge batteries.
Gamma+ is available with LCD, for better user interface. It shows battery voltage, charging current, output voltage , output frequency, output load percentage, Input voltage, Input frequency, solar voltage, solar current & consume solar power. It has four switches to configure Operational mode – Grid charger, IT Load, Smf/Tub, boost charging & mode selection.
All the parameters like battery charging voltage, battery high cut, battery low cut, battery charging current can be adjusted manually by the user as per their choice or requirement.
To increase the life of battery maintain the gravity and temperature and to increase the backup of battery we use the stages of charging and equalize automatically in a month.
The frequency of DG output is a very vital parameter that always varies. And if the system is in DG enable mode then the system will be compatible to take any of the frequency as the input source frequency.
IT mode is used for IT loads which provide protections to IT instruments like computers, printers etc. In IT mode the change over time is very less so that there should not any kind of breakdown in power supply.
PCU Mode – Priority Solar →Battery → Grid
Smart Mode – Priority Solar → Grid → Battery
Hybrid Mode – Priority for load Grid →Solar →Battery,
Priority for battery charging Solar → Grid
| Brand | UTL |
| Recommended Uses For Product | Home |
| Power Source | Solar and Battery Powered |
| Wattage | 2400 Watts |
| Battery Capacity | 200 Amp Hours |
Brand: UTL ● Controller-based Design, Pure Sine Wave with 100% Tracking of Solar Panel, Built in r-MPPT Charge Controller. ● Multi-Color LCD Display. ● All Parameters Selected. ● Freq.: – Available – 50Hz & 60Hz. ● Multi Charging Stage (Bulk, Absorption & Float) ● Solar Priority of Load & Battery Charging. ● Preference to Solar…
If you are looking for 3Wheelers Battery pack like Toto, Rickshaw, Small car then this battery is best for your application. This battery is lithium phosphate one provide more life span and more safe than normal lithium Ion battery pack. A lead acid battery can gives only 1year life where this battery provides more than 6years life. Compact in size and more powerful. You can use up to 3000 watts motor easilty on this battery pack.
Cell Details –
Cell Number – Prismatic
Brand – Highstar
Single Cells Capacity – 100,000 mah
Cells Grade – A+ Grade
Cells Cycle- >6000 aprox
Battery Configuration –
Total no of cell used – 16 pcs
Battery arrangement – 8×1
BMS Details –
Details- 16S100A LFP BMS
BMS Series – 16
BMS Dischage Current -100A
BMS Charge Current – 50A
Thermal sensor Protection – YES
Battery Capacity test –
Maximum Battery Capacity – 100AH or 100,000 mah
Battery Energy – 5120wh
Maximum Power Motor you can attach – 5000 watts
Maximum discharge current – 100A
Maximum charging current – 50A
Battery Voltage Rating-
Battery standard voltage – 51.2V
Battery full charge voltage – 56.6V
Battery Low discharge voltage- 48.3
Battery Back Up-
This battery can provide a back up or mileage of 100 to 120km on three Wheeler or Toto Or E-Rickshaw.
We manufacture this battery in our industry with proper IR testing, Spot welding, Balancing and with Premimum quality BMS board. This battery is protected with over charge protection. Low discharge protection. This battery weight is very low than your normal lead acid battery
| Particulars | Description |
| System Rating | 1250/50A |
| Capacity | 1000VA |
| Operating DC Voltage | 12V |
| Nominal Grid Voltage | 230V |
| Battery Low Buzzer | 10.8V |
| Battery Low Cut | 10.5V |
| Battery High Cut | 16.5V |
| Grid Charging Voltage (Equalize) | After 30Days |
| Grid Charging Current | 12A/15A |
| Grid Reconnect @ Battery Voltage | 11.8V |
| Output Phase | 1 Phase |
| Nominal Output Voltage | 220V±8% |
| Max. Output Current | 2.9A |
| Nominal Frequency | 50Hz±1% |
| Output Waveform | Sine wave |
| Typical Efficiency | ≥80% |
| Maximum PV Power Recommended | (150W/160W)x5 |
| Solar current max | 50A |
| Solar current min | >3A (Below 3A, System will act like Solar Absent) |
| Protection | Overload, Battery Low, Battery High, Output Short, Battery Reverse, Over Heat, Over frequency, Under Frequency, SPV High. |
| LED Indication | System ON, (IT Mode, SMF/TUB, Boost Chg., DG Mode, Grid Chg.) Enable/Disable. |
| Switches | Reset for System ON/OFF, UP, Down, Back, Enter(For LCD Calibration) |
| Standard Compliance | IP20 |
| Weight | 11Kg |
| Dimension L x W x H | 300x265x128 mm |
Home PCU gives first priority to Solar power over Grid power during charging. It means that when Solar power is available, the batteries will be charged through Solar Power whether Grid Power is available or not. It goes to Grid power only when Solar Power is unavailable. Thus it helps in reducing electricity costs along with keeping the environment clean.
Home PCU can be operated with or without Solar Panel. The user can use Home PCU as a regular inverter without bothering about use of solar power. Whenever the user feels that solar power would be beneficial, he/she has to just install a Solar Panel and then derive the benefits of Solar Power.
Home PCU from the house of UTL has the intelligent feature to recognize the type of battery connected to it. It may be an ordinary battery or a branded one, a tubular battery or a sealed one. No matter what the type, it auto adjusts the battery’s charging characteristics accordingly. Even those batteries which cease to go over 13.5V after a while of use work flawlessly with UTL’s Home UPS.
There are a number of protections that the Home PCU ensures. It stops reverse current flow from battery to solar array, it provides load short circuit protection, and it provides Battery/Panel reverse protection through DC fuse and Overload protection also.
Home PCU is extremely easy to install and is available at a very low budget. It also helps in reducing the electricity costs. This means double advantage for the customer. Thus, it is an ideal product for present day and age.
IT loads which provide protections to IT instruments like computers, printers etc. In IT mode the change over time is very less so that there should not be any kind of breakdown in power supply.
PCU Mode – Priority Solar →Battery → Grid
Smart Mode – Priority Solar → Grid → Battery
Hybrid Mode – Priority for load Grid →Solar →Battery,
Priority for battery charging Solar → Grid
The frequency of DG output is a very vital parameter that always varies. And if the system is in DG enable mode then the system will be compatible to take any of the frequency as the input source frequency.
| Brand | Generic |
| Recommended Uses For Product | Home |
| Power Source | Solar and Battery Powered |
| Wattage | 2500 Watts |
| Battery Capacity | 200 Amp Hours |
| Brand | Generic |
| Recommended Uses For Product | Home |
| Power Source | Solar and Battery Powered |
| Wattage | 3000 Watts |
| Battery Capacity | 200 Amp Hours |
| Brand | UTL |
| Recommended Uses For Product | Home |
| Power Source | Solar and Battery Powered |
| Wattage | 3500 Watts |
| Battery Capacity | 200 Amp Hours |
• Inbuilt Galvanic Isolation Transformer
• Export Excess Power Generated & Also Get Backup
• In-built Zero Export Function
• Advanced DSP Control
• IGBT Based Rectifier
• Surge protection on Grid side & PV side
Luminous Nxi Grid Tie Inverters are power inverters that can feed power from solar panels directly to the grid. They are designed to quickly disconnect from the grid if the utility grid goes down (anti-islanding). More than 97% efficiency The transformer-less design makes Luminous GTI highly efficient in delivering maximum Solar Power. IP66 Protection Luminous GTI is an IP 66-certified product hence it is suitable for outdoor Installation also. It can work in extreme weather conditions such as dust, heavy rains, excessive heat, or extreme cold. Anti-Islanding protection This does not send electricity to the grid if the Grid has failed, thereby ensuring the complete safety of line workers. Wi-Fi and Remote Monitoring Users can connect with Luminous GTI using Wi-Fi and access information and diagnostics via smartphone. MNRE & IEC compliance GTI complies with all the National & International standards for safety efficiency and reliability, such as IEC – 61683, IEC – 60068, IEC – 61000, IEC – 61727, IEC – 62116
